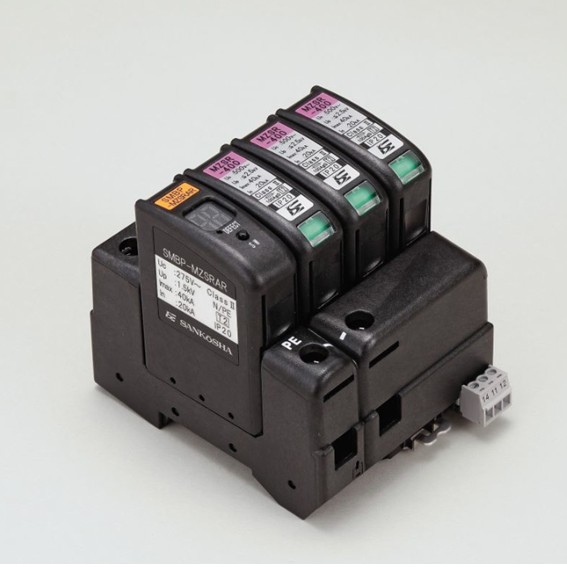

SMBP MZSR Series
- Conforming standards
- IEC 61643-11 compliant
- RoHS compliant
- Features
- Maximum discharge current up to 40kA (8/20μs)
- Lightning surge current measurement, Replacement recommendation display function
- Lightning surge current count display function
- Plug-in type
- Deterioration display function (warning contact output terminal)
- Applications
- Low voltage power supply circuits in switchboards and distribution boards（AC 100V/200V, 400V）
- Power supply circuits in control equipment（AC 100V/200V, 400V）
