Smart SPD
- Conforming standards
- IEC 61643-11 compliant
- RoHS compliant
- Features
- Maximum discharge current up to 40 kA (8/20 μs)
- Lightning surge current measurement, Replacement
- recommendation display function
- Lightning surge information display function (3 phases-Small, Middle, Large with date, hours, minutes and seconds)
- Remote
- Applications
- Low voltage power supply circuits in switchboards and distribution boards (AC 100V/200V, 400V)
- Power supply circuits in control equipment (AC 100V/200V, 400V)
작성자 정보
- 최고관리자 작성
- 작성일
컨텐츠 정보
- 16 조회
- 목록
본문

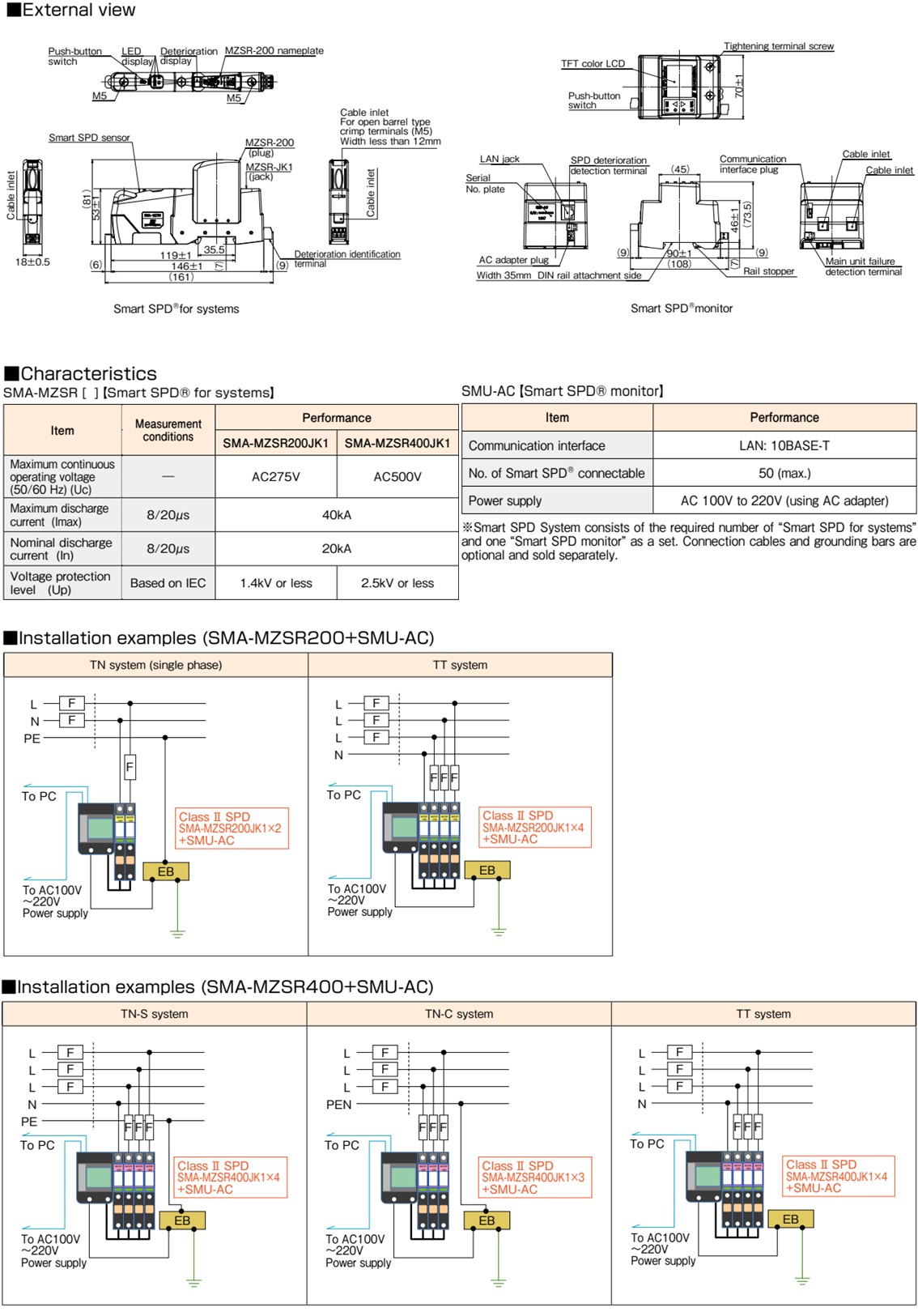

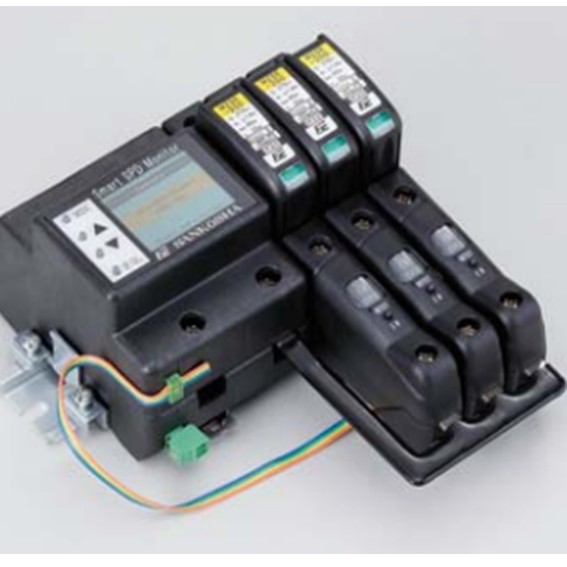

By using Smart SPD®monitor "SMU-AC" with Smart SPD® "SMA-MZSR 200JKI" "SMA-MZSR 400JKI", Smart SPD® System can do the centralized management and the remote monitoring by LAN.
